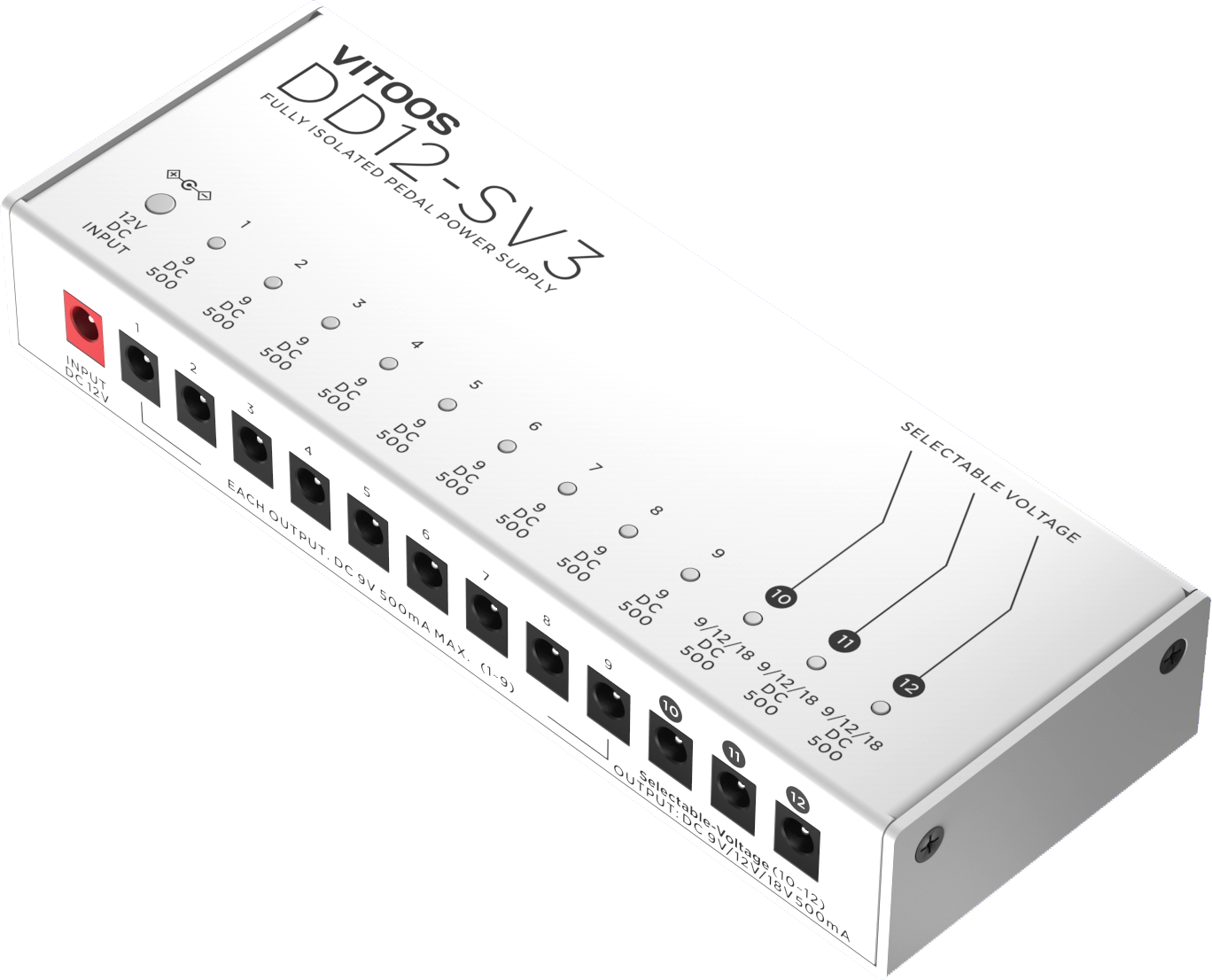

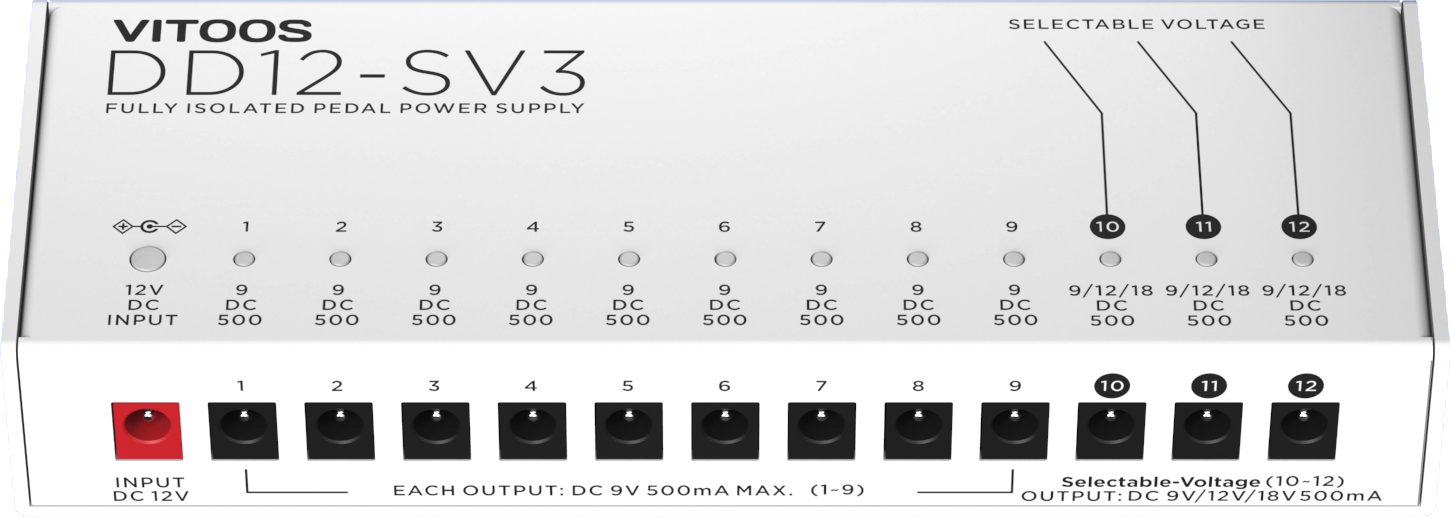

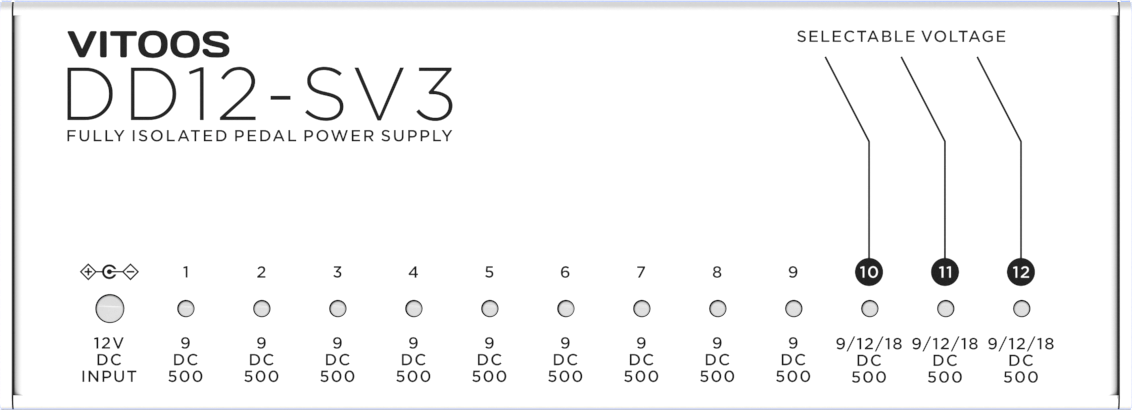

DD12-SV3
12 OUTPUTS

INPUT:12V3A
OUTPUT1-9:9V 500MA
OUTPUT10-12:9V/12V/18V 500MA ADJUSTABLE

SPECIFICATIONS

main body SIZE 190*70*30mm
main body WEIGHT 356g
PACKAGE SIZE 273 x 236 x 64 mm
PACKAGE WEIGHT 1530g
INPUT 12V3A
OUT POWER 27W（MAX）
OUT CHANNEL 12
OUTPUT 1-9 9V500mA
OUTPUT 10-12 9V/12V/18V 500mA
Short/overload
protection		 YES
ISOLATED   FULLY ISOLATED



VIDEO
HIGHLIGHT
VITOOS电源新丝印DD.650
速卖通主图DD12-SV3.495
VITOOS电源新丝印DD.664
速卖通主图DD12-SV3.494
DD12对比
DD12-SV3 VS DD12-AV4

DD12-SV3 model DD12-AV4
12 channel 12
12V3A input 18V2A
36W
Wattage
 36W
9 Includes 9V output 8
3*  9V/12V/18V Adjustable voltage 4*  6V~18V
190*70-30mm size 190*70*30mm
356g weight 356g
PACKING LIST
包装清单.394
1 x AC to DC Adapter 12V3A (negative polarity on the inside)
1 x Straight to Right-angled 30cm
12 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male  (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
