DD5-SV2
5 OUTPUTS

INPUT:12V2A
OUTPUT1-3:9V 500MA

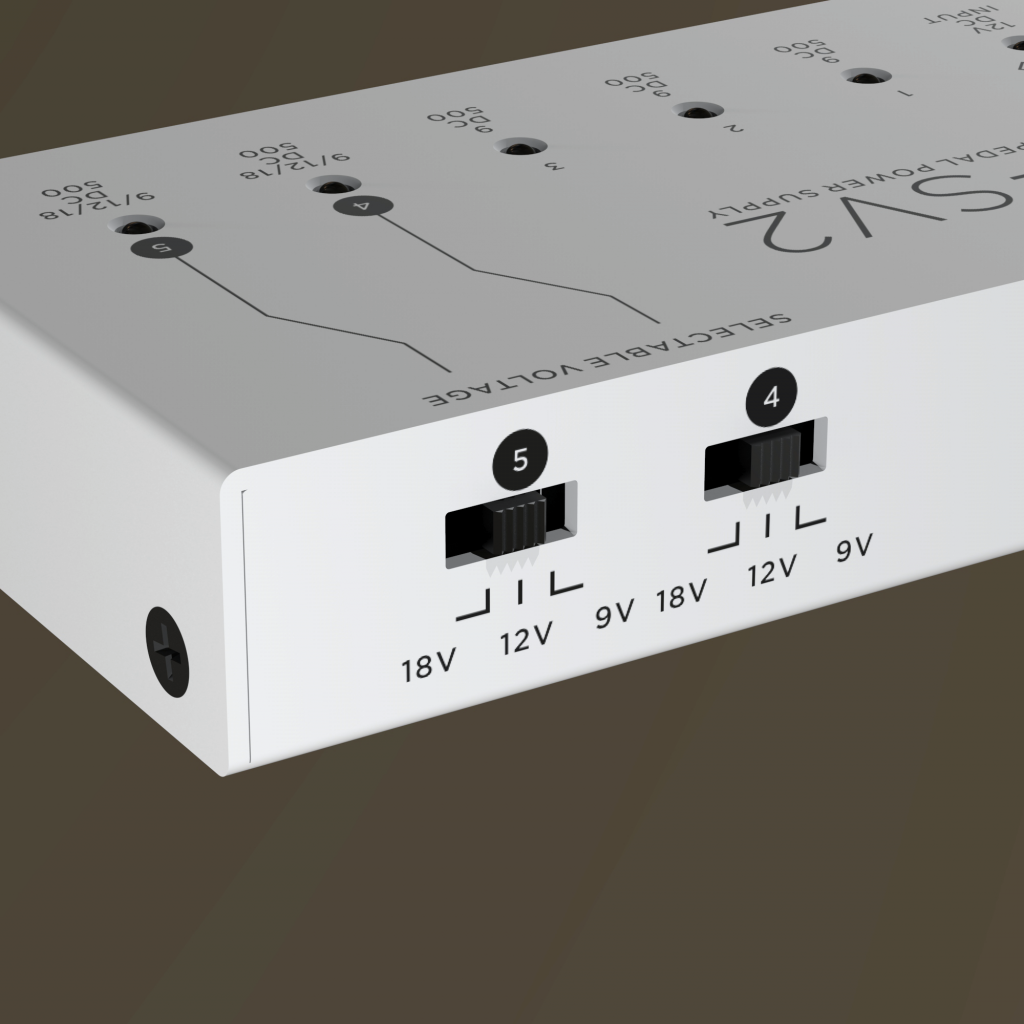

OUTPUT4-5:9V/12V/18V 500MA ADJUSTABLE

SPECIFICATIONS

main body SIZE 110*60*20mm
main body WEIGHT 140g
PACKAGE SIZE
152 x 116 x 80 mm
PACKAGE WEIGHT 570g
INPUT 12V2A
OUT POWER 27W（MAX）
OUT CHANNEL 5
OUTPUT 1-3 9V500mA
OUTPUT 4-5 9V/12V/18V 500mA
Short/overload
protection		 YES
ISOLATED FULLY ISOLATED



VIDEO
HIGHLIGHT
VITOOS电源新丝印DD.655
VITOOS电源新丝印DD.654
VITOOS电源新丝印DD.656
5路电源对比
5 CHANNEL POWER SUPPLY COMPARISON

model DD5-SV2 AD5 TRANSFORMER AD5 SWITCHER AD5S PRO AD5S LINK
channel 5 5 5 5 5
input DC 12V AC 115  or  AC 230V AC 110~240V AC 110~240V AC 110~240V
Wattage
 18W 11.25W 22.5W 21.6W 22.5W
LINK X X X √ √
Includes 9V output 5 5 5 5 5
Adjustable voltage 2 X X 5 X
size 110*60*20mm 105*140*45mm 130*83*30mm 130*88*35mm 130*88*35mm
weight 140g 990g 240g 400g 400g

Click on the picture and rotate the phone
PACKING LIST
包装清单.407
1 x AC to DC Adapter 12V2A (negative polarity on the inside)
5 x Straight to Right-angled 60cm


BUY NOW
